Would you like to take out your laptop with you but cant extend its power because it still uses a barrel jack? Worry no more. If you would like to convert your old laptop’s power input, just follow these steps.
Find out your laptop’s power input
There are two ways to find out your laptop’s power input.
- Look at the bottom of your laptop and find the input voltage and amps.

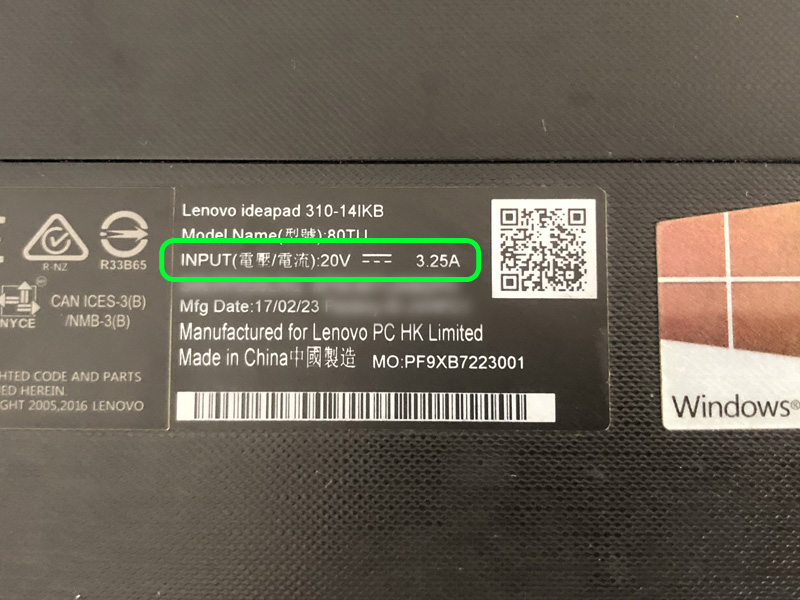

bottom of the laptop showing input power requirement - Get your laptop’s power adapter and look for the output that shows the voltage and amps.

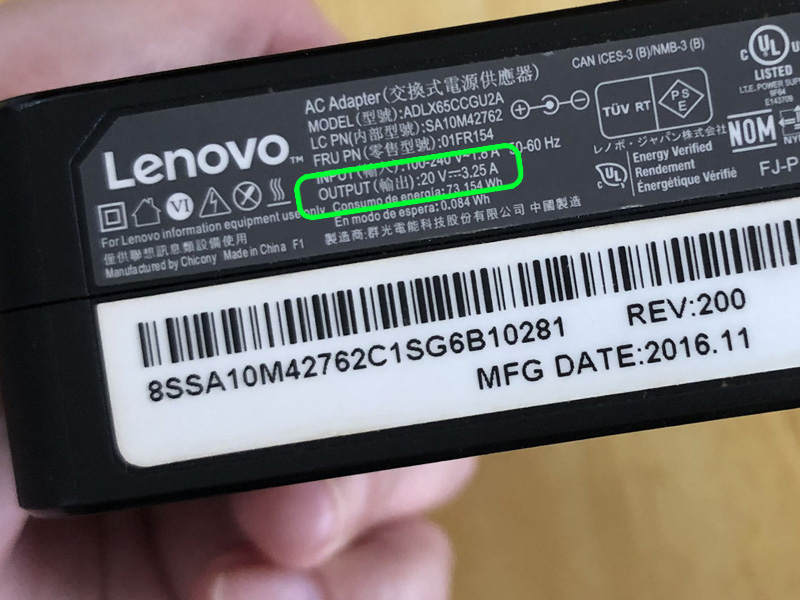

laptop power adapter showing its output power
After getting the voltage and amps, multiply the two values together and the result would be the minimum power input. So let’s say that my laptop shows 20V – 3.25 A. If I multiply 20V x 3.25 A, the result would be 65W.
Now that we have the minimum power requirement which is 65W, it is very important to remember that all the components we are going to buy, starting from the adapter to the cable to the power bank, should be able to handle 65W or higher.
Buy a DC to USB-C adapter
First, you need to measure your power adapter’s DC jack size. If you don’t have the original adapter anymore, you can search for the size online. Then, you can find different types of DC to USB-C adapters in Lazada and Shopee. If you are still not sure, just ask the seller from Lazada or Shopee and they would gladly help you out.
| Sizes | Laptop Brand |
| 2.5mm x 0.7mm | ASUS 19V 1.58A |
| 3.0mm x 1.1mm | ASUS or Acer Adapter |
| 3.5mm x 1.35mm | – |
| 4.0mm x 1.35mm | ASUS Zenbook UX21A, UX31A, etc. |
| 4.0mm x 1.7mm | Lenovo IdeaPad 310, 110, 100, etc. |
| 4.5mm x 3mm black | Dell Ultrabook Adapter |
| 4.5mm x 3mm blue | HP Envy Laptop Adapter |
| 4.8mm x 1.7mm | HP Compaq 610, 615, etc. |
| 5.0mm x 3.0mm | Samsung Laptop Adapter |
| 5.5mm x 1.7mm | Acer laptop adapter |
| 5.5mm x 2.1mm | – |
| 5.5mm x 2.5mm | Asus Toshiba Laptop Adapter |
| 6.0mm x 0.6mm | – |
| 6.5mm x 4.4mm | Sony Laptop Adapter |
| 7.4mm x 5mm | HP or Dell Laptop Adapter |
| 7.9mm x 5.5mm | Lenovo Thinkpad E420 E430 T61 T60p Z60T T60 T420 T430 F25 |
| USB Square Plug | Lenovo Thinkpad |
Buy a compatible USB-C to USB-C cable
After choosing the correct DC to USB-C adapter, the next we need to find is a USB-C to USB-C cable. There are various USB-C cables available in Lazada and Shopee. But in my case, I did not need to buy a separate cable because the one I have already came included in the power bank I’m using. So what I would recommend is the USB-C cable from UGREEN which already comes included in their power banks.
Buy a compatible power bank or charger
When it comes to selecting a power bank or charger for your laptop, the process can be a little bit tricky because some manufacturers do not display the maximum power output for each port of the charging device. For example, some chargers advertise it is capable of 100W output, but if you look at the individual charging port, the 100W is a combination of the power output of the ports.
So what I recommend is the UGREEN Nexode 12000mAh Power Bank which supports 100W power output and already includes a 100W USB-C to USB-C cable.
But if you need more than 100W, you can browse our collection of power banks and chargers.
